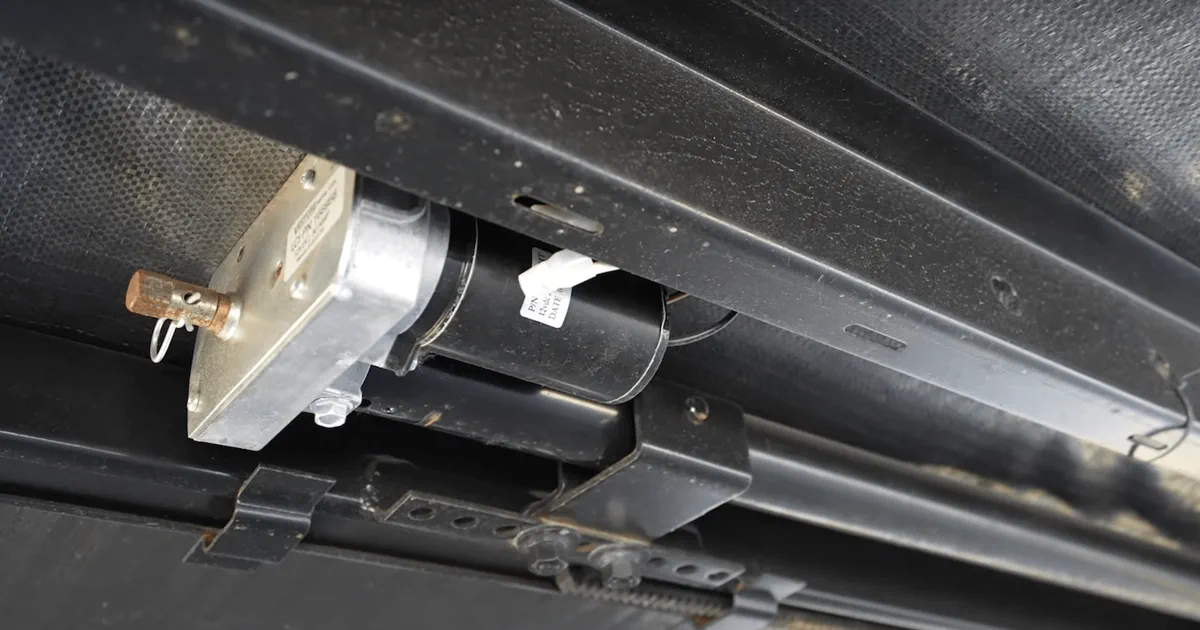

How much does it cost to replace a Schwintek slide motor?
Schwintek in-wall motor replacement runs $485 - $985 installed, and that range comes down to two variables: whether one or both motors in the system need to swap (each slide uses a motor on each side, synchronized by the control module), and whether the rail bearings need a rebuild at the same time. If one motor has failed, we test both before we order parts - a motor that's dragging or running hot is usually weeks away from following the dead one, and doing both in a single dispatch saves you a second service call.
We use OEM Lippert / Schwintek parts, never aftermarket rebuilds, because the torque specs and encoder signals have to match the control board exactly or you'll get sync errors that damage the rail. We quote flat-rate by phone before we dispatch, so you know the number before we show up.
Why is my Lippert in-wall slide grinding when it travels?
Grinding on a Lippert in-wall (Schwintek) system almost always points to stripped teeth on the gear rack or a worn pinion in the motor head - two parts that take the full load every time the slide cycles. On-site, we start by running the slide through a partial cycle while we listen and watch both sides, because the noise often tells you which motor head is the problem before we pull anything apart.
We also check sync between the two motors, since a slide that's racked - one side ahead of the other - will grind even if the gear teeth are fine, and correcting sync is a software reset rather than a parts swap. A bent rail from a prior hard bind is a third possibility and changes the repair entirely, since you're straightening or replacing aluminum extrusion rather than swapping a gear pack. We quote the specific fix before we touch it so you know whether you're looking at a motor head swap, a rack section, or a rail repair.

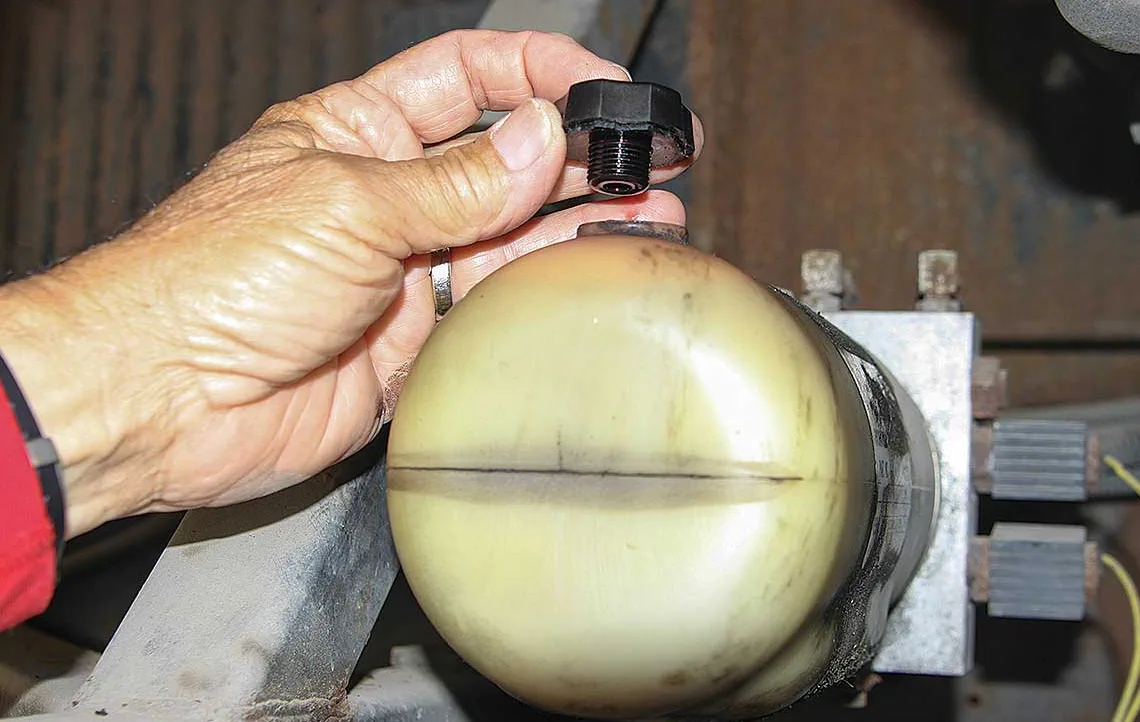

Can you fix a hydraulic slide that won't extend or retract?
Yes. Hydraulic slide failures almost always trace to one of four things: a leaking cylinder seal, low or contaminated hydraulic fluid, a failed pump or solenoid, or a bad slide controller.
When we arrive, we start by checking fluid level and condition at the reservoir, then test solenoid voltage while commanding the slide, then inspect the cylinder for weeping fluid around the seals. That sequence tells us whether we're dealing with a fluid service, a seal replacement, or a pump and controller swap.
We carry HWH and Lippert hydraulic seals, fluid, and replacement pumps on the truck, so most jobs finish in one visit. One edge case worth knowing: if the slide has been stuck extended or retracted long enough to shift the room frame, straightening that adds time and may require a second visit.
How long does a slide topper last and when should I replace it?
Slide topper fabric lifespan comes down to UV exposure and how often the rig moves. In Florida's Treasure Coast heat, most fabrics start showing UV chalking, edge fraying, or small pinholes around the four to six year mark.
In Idaho and cooler climates, the same fabric can last seven to ten years. The failure modes to watch are sagging sections that pool water on top of the slide, frayed edges that let wind get underneath and tear the seam, and pinholes that drip onto the slide roof every time it rains.
That standing water is the real problem - it sits on the slide roof, wicks into the seam tape, and starts rotting the underlayment. By the time the underlayment is soft, you're looking at a structural repair that costs several times what a topper replacement runs. If the fabric is borderline, we'll tell you honestly whether a reseam and re-tensioning buys another season or whether a full swap makes more sense.
What's the difference between a wiper seal and a bulb seal on a slide?
The wiper seal is the flexible flap that runs along the top and bottom edges of the slide opening - it contacts the slide surface as the room travels in and out, scraping away water, debris, and insects. The bulb seal sits on the interior perimeter and compresses against the slide frame when the room is fully retracted, creating the airtight and watertight barrier you actually live with day to day.
They fail differently: wiper seals crack, tear, or curl from UV exposure and road grime, usually showing up as streaks on the slide skin or bugs getting inside while extended. Bulb seals flatten out over time and lose their ability to compress fully, which shows up as drafts, interior water intrusion around the slide edges, or visible gaps when the room is closed. We inspect both on every slide call, because a deteriorated bulb seal is often hiding behind a wiper seal that still looks passable - replacing only one and missing the other means a callback in six months.

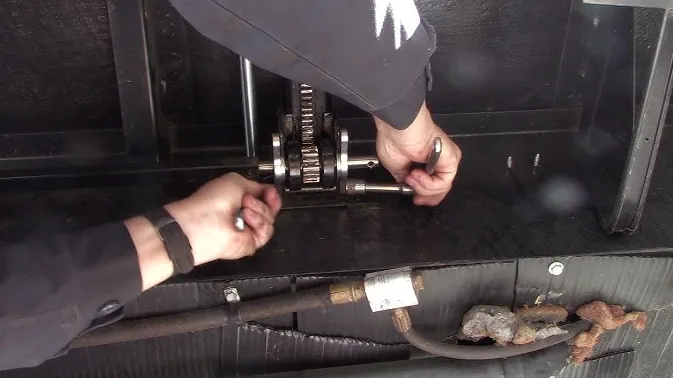

My slide is out of alignment and binds on one corner. Can you adjust it?
Yes, slide alignment is something we handle on-site. The process starts with measuring the room at all four corners to find where the skew is, then adjusting the in-wall travel stops and, on Schwintek systems, re-syncing the motor pair so both sides move at the same rate.
We also check rail straightness and the floor and ceiling wipe seals, since a binding corner usually means one side has been dragging and wearing unevenly. If we find a worn gear pack, a bent rail section, or a stripped inner channel during the inspection, we stop and quote that repair before going further - pushing a misaligned room past a mechanical problem makes the damage worse. Alignment runs a flat $245 when no parts are needed.
Does cold weather hurt hydraulic slide systems in Idaho?
Yes, cold weather is one of the most common ways hydraulic slide systems fail in Idaho winters. Standard hydraulic fluid thickens significantly below freezing, which forces the pump to work harder than it was designed to - over time that stresses seals, slows slide travel, and can burn out the pump motor entirely.
We carry low-viscosity cold-weather hydraulic fluid on the truck and swap it out as part of a winter prep visit for any rig storing outside in the Treasure Valley. Gear-rack systems have their own cold-weather problem: water works into the rack and motor housing, then freezes and locks the mechanism solid.
We drain and re-pack those with fresh low-temperature grease before the first hard freeze. If you wait until the slide won't move at all, you're often looking at a pump or motor replacement on top of the fluid service - the preventive visit is the cheaper call.
Will you work on Schwintek, Lippert, BAL, HWH, and Power Gear systems?
Yes - all five, plus Klauber and Norco. Schwintek and Lippert in-wall systems cover the bulk of mid-2010s and newer travel trailers and fifth wheels, so we see them constantly and carry the sync motors, control modules, and worm drive components they need most.
BAL and Power Gear gear-rack systems are more common on older rigs, and the typical failure there is a stripped rack or a worn motor brush rather than electronics. HWH hydraulic shows up almost exclusively on Class A motorhomes and involves a different diagnostic process - checking pump pressure and valve function before assuming the cylinder is the problem. We stock parts and carry the manufacturer-specific tooling for all of these, so we're not ordering blind once we're on-site.
What if my slide is stuck out and I need to drive home?
A stuck-out slide is one of the situations we treat as a road emergency, because driving or towing with a slide extended risks shearing the mechanism, damaging the slide seals against brush or other vehicles, and in some cases losing the slide entirely at highway speed. When we arrive, the first thing we do is identify the system - Schwintek in-wall motor, Lippert electric, or hydraulic - and attempt the manual override before touching anything else.
We carry the Schwintek crank, Lippert hex override tool, and hydraulic manual valve keys on every truck. Most of the time we can get the slide retracted and travel-locked within an hour or two. If the override won't move it - seized rack, stripped gear, or a hydraulic line that lost pressure - we assess whether a partial repair gets you road-safe that day or whether the rig needs to stay put until parts arrive.
Do you reseal the slide-out floor when seals are replaced?
Yes - floor resealing is a separate line item ($585-$985) but it makes sense to schedule it alongside wiper seal replacement, since the slide is already pulled out and the perimeter is exposed. The job involves stripping the old caulk from the floor perimeter, inspecting the underlayment for soft spots or early rot, and applying a fresh bead of compatible sealant around the full perimeter before the slide goes back in.
In Florida, the combination of humidity and driving rain pushes water past compromised caulk within a season or two. In Idaho, freeze-thaw cycles crack perimeter caulk faster than most owners expect. If we find soft underlayment during the inspection, we'll let you know before continuing - that's a separate repair, but catching it early is far less expensive than replacing a fully rotted slide floor later.
